It all starts with the sensor

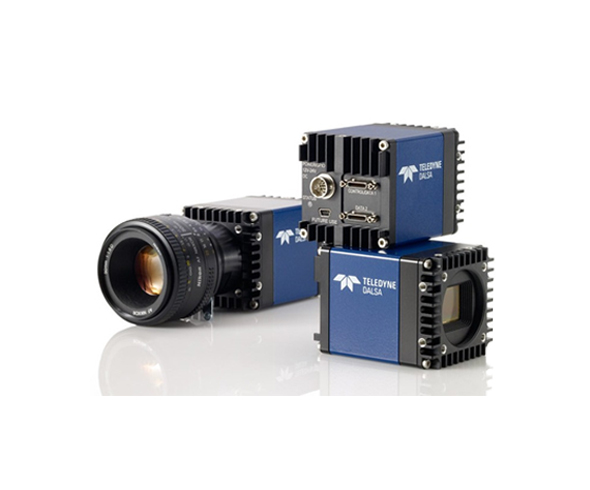

The Falcon2 series is Teledyne DALSA's latest high-performance area camera family. Featuring our latest CMOS technology for high speed, high resolution imaging with true global shutter operation, the Falcon2 cameras deliver high quality images of fast-moving objects without smear or distortion.

Frame Rate Calculators

It continues with the camera

Teledyne DALSA's Falcon2 cameras also provide an extensive feature set including programmable exposure time via Camera Link interface or additionally by external hardware signals, and selectable aspect ratios (4:3 and 1:1). Wrapped in a remarkably compact, rugged, thermally efficient body that has been optimized for industrial applications, the Falcon2 cameras deliver outstanding performance and value.

Remarkably rugged with an extensive feature set

· High resolution and frame rate

· Superior image quality

· Reduced dark noise levels and improved dark offset

· Improved sensitivity

· In-camera image pre-processing (flat field correction)

· Global shutter imaging to crisply capture moving objects

· Selectable 4:3 or 1:1 aspect ratios while maintaining the same resolution (for 8M and 4M models)

· Color models available

· Customizable user settings

· Rugged and reliable

Specifications

Family	Falcon2
Partnumber	FA-81-4M180
Resolution	4.2 Megapixel
Resolution(H*V)	2432 x 1728 (4:3)2048 x 2048 (1:1) pixel
Sensor	Teledyne DALSA CMOS
Sensor size(Image Circle)	17.9 mm
Sensor Format(Inch)
Turbodrive Frame Rate
Frame Rate	168 fps
Pixel Size	6 μm
Interface	Mini CL
Spectrum	Color
Readout Method	Global
Dynamic Range	50 dB
Sensor type	CMOS
Mount	M42 x 1
Size	60 x 60 x 80.5 mm
Maker	Teledyne Dalsa
