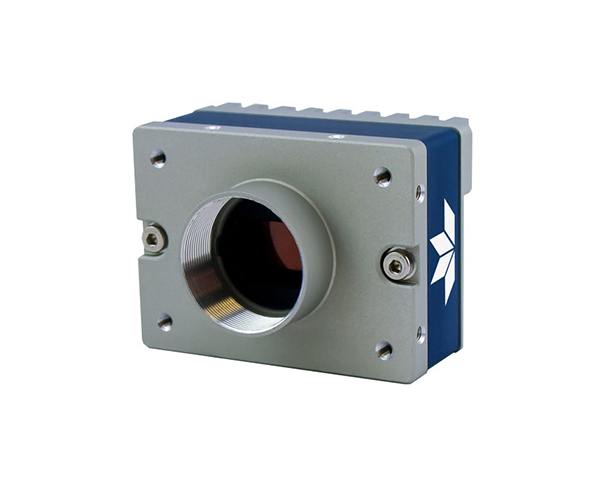

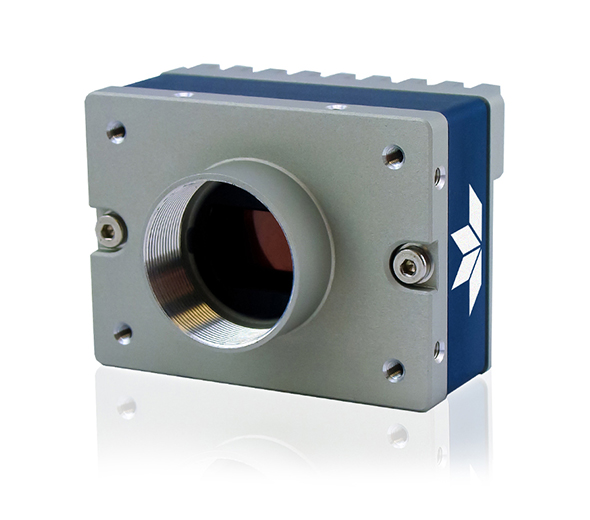

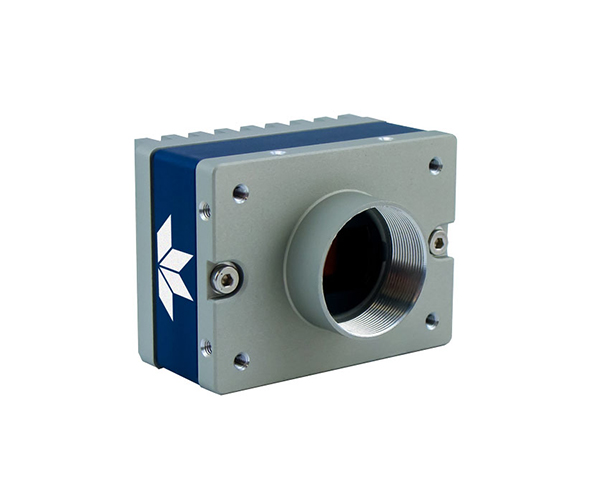

Genie Nano 12.4M Color, 5GigE
High speed data transmisson 5GigE area camera

The new standard for speed

Engineered for imaging applications that require high-speed data transfer, the all new Genie Nano 5GigE is an easy replacement for cameras built into current vision systems that rely on the existing GigE Vision interface standard. The new Genie Nano 5GigE models feature the brand new 5Gbps (5GBASE-T) link speed.

When combined with Turbodrive, you get the same throughput as 10GigE but lower cost of ownership.
5GigE 5GigE /strong>
585 MB/s
Without Turbodrive
985 MB/s
With Turbodrive

Flexible and powerful

Like all Genie Nano cameras, the new Genie Nano 5GigE models are offered in a compact form and available in multiple resolutions ranging from 3.2MP to 12MP, with fast frame rates from 190 to 63 fps. System designers for industrial automation, electronics manufacturing, packaging, semiconductor inspection, and general machine vision inspection can expect a smooth integration path to extend the life of an existing system with little difficulty.

Specifications

Family Genie Nano
Partnumber G5-GC30-C4040
Resolution 12.4 Megapixel
Resolution(H*V) 4112 x 3008 pixel
Sensor Sony IMX 253
Sensor size(Image Circle) 17.58 mm
Sensor Format(Inch) 1.1"
Turbodrive Frame Rate 63 fps
Frame Rate 49 fps
Pixel Size 3.45 μm
Interface 5GigE
Chroma Color
Readout Method Global
Dynamic Range 76.46 dB
Sensor type CMOS
Mount
Size 59 x 44 x 32 mm
Maker Teledyne Dalsa
