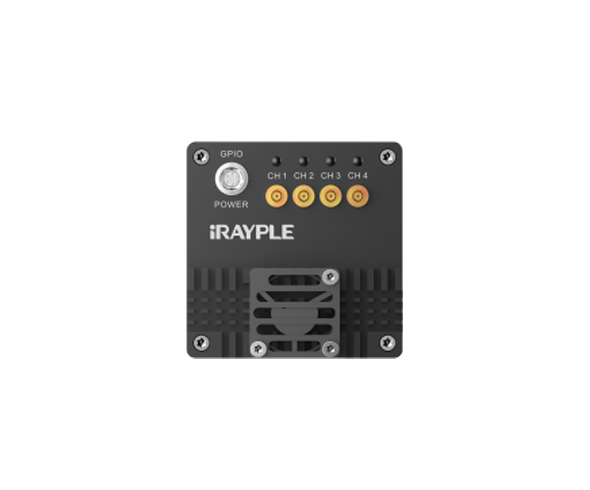

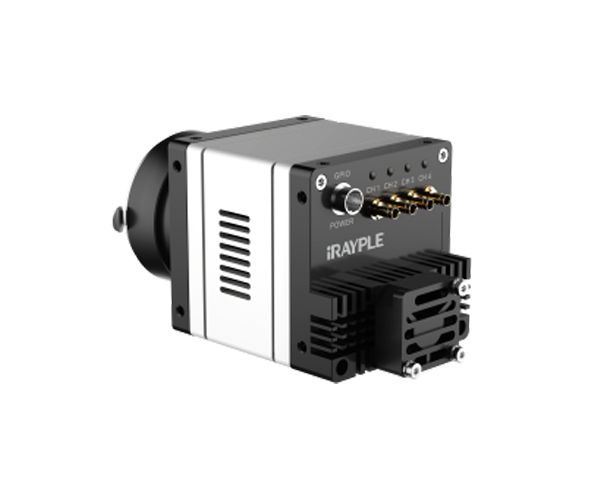

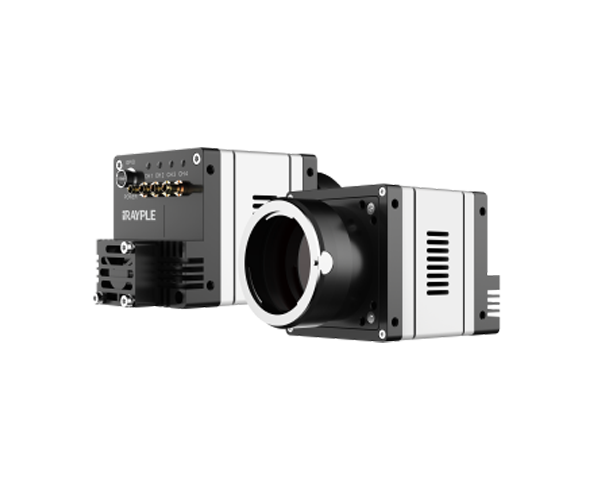

HuaRay iRAYPLE 12.6M Color, CXP(F)
Affordable coaxpress camera for fast productivity.



Technical features

- CoaXPress applies CXP-6 with a theoretical 4x6.25GB bandwidth

- External trigger / Free run mode

- Support edge enhancement,noise reduction ,gamma correction ,black level correction ,LUT,etc

- PoCXP/ support DC24V wide-range power supply

- Support multiple image data formats,ROI,etc

- Conform to CE,FCC,UL and RoHS certifications

- Conform to CoaXPress protocol and GenICam standard

Application Industry

- Railway industry

- LCD

- Panel inspection and other industrial inspection and science research

Specifications

Family iRAYPLE
Partnumber AX5A22CX060E(KEH-12XC2)
Resolution 12.6 Megapixel
Resolution(H*V) 4096 x 3072 pixel
Sensor AMS CMV12000
Sensor size(Image Circle) 28.16 mm
Sensor Format(Inch)
Turbodrive Frame Rate
Frame Rate 188 fps
Pixel Size 5.5 μm
Interface CoaXPress (CXP-6)
Chroma Color
Readout Method Global
Dynamic Range 60 dB
Sensor type CMOS
Mount
Size 72 x 72 x 72 mm
Maker Huaray
