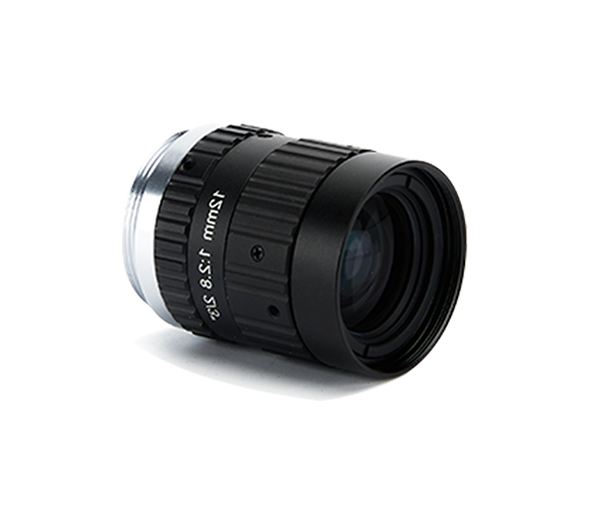

- FA1210E
- High performance lens for 10 Mega pixel camera
Features of Products
- Ultra high imaging quality
- High relative illuminance, large aperture
- Focus range from 0.1M to infinity
- Compact, super compact design
앤비젼 C-mount 광학계산기
간단한 입력을 통해 C-mount 렌즈 관련
유용한 정보를 얻을 수 있습니다. (로그인 후 사용가능)
1) Focal Length
2) Working Distance
3) FOV
주요 사양
| Family | FA |
|---|---|
| Partnumber | FA1210E |
| Focal length | 12 mm |
| Image circle | 10.6 mm |
| Sensor Format(Inch) | 2/3'' |
| F/# | 2.8 ~ 16 |
| Iris Option | Variable |
| Mount | C |
| MOD | 100 mm |
| Distortion | <0.2 % |
| Magnification range | ∞ ~ 0.109 x |
| Magnification | 0.109 x |
| Wavelength | Visible |
| Type | Fixed focal length |
| Maker | Chiopt |
| Resolution | 10MP |
