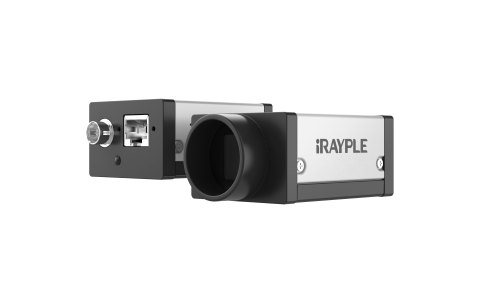

- HuaRay iRAYPLE 25M Mono, GigE
- Compact한 크기와 합리적인 가격으로 더 향상된 A-Pro Series 카메라
iRAYPLE 카메라를
선택해야만하는 이유
강력한 ISP 알고리즘을 지원하고 다양한 해상도와 GigE Vision을 포함한
Huaray 카메라의 더욱 향상된 A-Pro Series를 소개합니다.
Technical features
- Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m
- 256MB on-board cache for data transmission or image resend;
- Support Software Trigger/Hardware Trigger/Free Run Mode
- Support ISP functions including Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast,FFC,Denoising Sharpness etc.
- Support multiple image data formats output/ROI/Binning(Including Pixel arbitrary scaling)/Mirror/ AutoFunction/Compress/Sequencer etc.
- Conform to GigE Vision V2.0 protocol and GenICam standard
- Conform to CE/UKCA/UL/KC, RoHS
Application Industry
- Defect inspection
- SMT
- Vision localization
- Dimension measurement
- Barcode reading
- VR/AR
- Logistic Industry
주요 사양
| Family | iRAYPLE |
|---|---|
| Partnumber | AH5B57MG200E |
| Resolution | 25 Megapixel |
| Resolution(H*V) | 5120 x 5120 pixel |
| Sensor | Gpixel GMAX 0505 |
| Sensor size(Image Circle) | 18.1 mm |
| Sensor Format(Inch) | 1.1" |
| Turbodrive Frame Rate | |
| Frame Rate | 4.5 fps |
| Pixel Size | 2.5 μm |
| Interface | GigE/PoE |
| Spectrum | Mono |
| Readout Method | Global |
| Dynamic Range | 63 dB |
| Sensor type | CMOS |
| Mount | C |
| Size | 29 x 44 x 58 mm |
| Maker | Huaray |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2026년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | [2026년] HuaRay iRAYPLE 25M Mono, GigE Datasheet | |
| 매뉴얼 | [2025년] HuaRay iRAYPLE GigE Area Scan Camera Manual | |
| 3D 도면 | [2025년] HuaRay iRAYPLE 29x44x58(4040) GigE 3D 도면 | |
