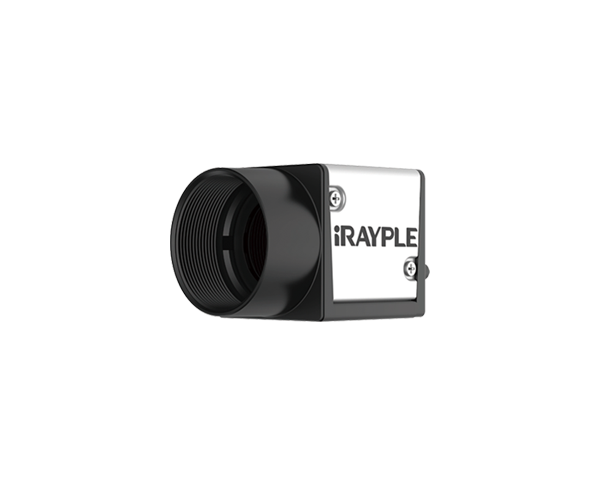

- HuaRay iRAYPLE 2M Mono, USB 3.0
- Compact한 크기와 합리적인 가격으로 더 향상된 A-Pro Series 카메라
iRAYPLE 카메라를
선택해야만하는 이유
USB 3.0 인터페이스 편의성에 안정적인 성능을 더한 Huaray 카메라의
더욱 향상된 A-Pro Series를 소개합니다.
Technical features
- USB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via USB interface
- Compact size of 29mmx29mmx30mm
- 256MB on-board cache for data transmission or image resend
- Support Software Trigger/Hardware Trigger/Free Run Mode
- Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
- Support multiple image data formats output/ROI/Mirror, etc.
- Compatible with USB3.0 Vision protocol and GenICam standard
- Conform to CE, UKCA, UL, KC, RoHS
Application Industry
- Defect inspection
- SMT
- Vision localization
- Dimension measurement
- Barcode reading
- VR/AR
- Logistic Industry
주요 사양
| Family | iRAYPLE |
|---|---|
| Partnumber | AH5200MU000E |
| Resolution | 2 Megapixel |
| Resolution(H*V) | 1624 x 1240 pixel |
| Sensor | Sony IMX 430 |
| Sensor size(Image Circle) | 9.19 mm |
| Sensor Format(Inch) | 1/1.7" |
| Turbodrive Frame Rate | |
| Frame Rate | 89 fps |
| Pixel Size | 4.5 μm |
| Interface | USB 3.0 |
| Spectrum | Mono |
| Readout Method | Global |
| Dynamic Range | 73 dB |
| Sensor type | CMOS |
| Mount | C |
| Size | 29 x 29 x 30 mm |
| Maker | Huaray |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | [2026년] HuaRay iRAYPLE 2M Mono, USB 3.0 Datasheet | |
| 3D 도면 | [2025년] HuaRay iRAYPLE 29x29x30(1016) USB 3D 도면 | |
