1) Support brightness enhancement, gamma correction, LUT and other ISP functions;
2) Support PRNU correction in target bright field;
3) Support various image formats of output data;
4) Support DC12~24V wide-range power supply;
5) Conform to CE, FCC, UL, RoHS certifications;

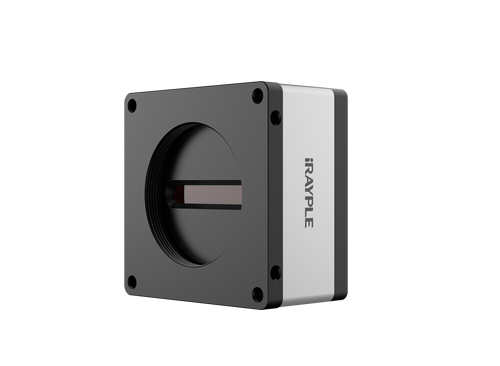

| Family | iRAYPLE Line |
|---|---|
| Partnumber | L5047CK141E |
| Number of Pixels | 4096 pixel |
| Number of Lines | 2 |
| Line Rate | 92 kHz |
| Pixel Size | 7 μm |
| Interface | CL |
| Spectrum | Color |
| Responsivity | |
| Dynamic Range | 66 dB |
| Sensor size(Image Circle) | 28.67 mm |
| Sensor type | CMOS |
| Mount | M42 x 1 |

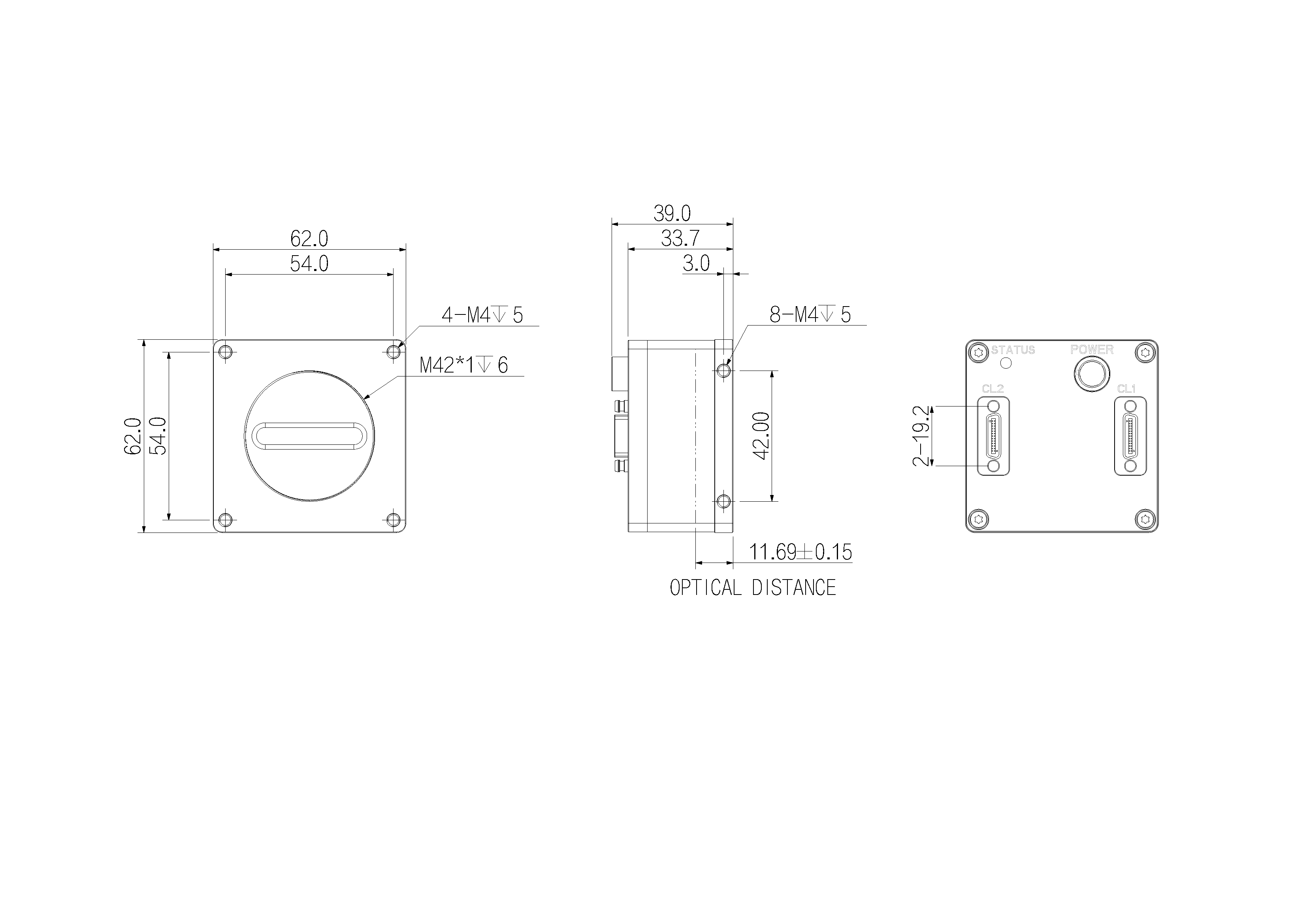

| Size | 62 x 62 x 33.7 mm |
| Maker | Huaray |
