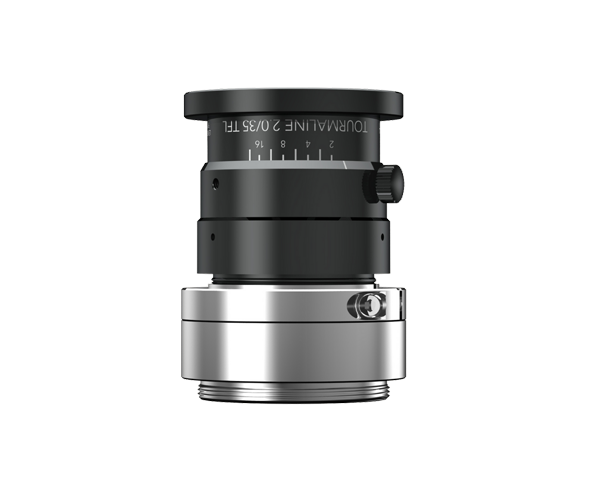

- TOURMALINE 2.0/35 TFL (구 Apo-Xenoplan)
- 성능이 뛰어난 C-Mount 렌즈
Key features
- 1.3" (24mm) max. sensor size
- Resolution down to 2.4µ pixel size
- Low chief ray angle suits all SONY Pregius™ generations
- TFL-Mount available
- Vibration insensitivity for stable imaging performance
- Focus and iris setting lockable
Application
- Machine Vision
- AOI (Automated Optical Inspction)
- 3D and 2D measurement
- Traffic and surveillance
- Robotic Vision
주요 사양
| Family | TOURMALINE |
|---|---|
| Partnumber | 1098690 |
| Focal length | 35.08 mm |
| Image circle | 24 mm |
| Sensor Format(Inch) | 1.3" |
| F/# | 2.0 ~ 22 |
| Iris Option | Variable |
| Mount | TFL |
| MOD | 160 mm |
| Distortion | |
| Magnification range | 0 ~ 0.2 x |
| Magnification | 0.2 x |
| Wavelength | 400 ~ 1000 |
| Type | Fixed focal length |
| Maker | Schneider |
| Resolution |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2024년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | [2022년] TOURMALINE 2.0/35 TFL Datasheet | |
| 3D 도면 | [2022년] TOURMALINE 2.0/35 TFL 3D Model(STP) | |
