- Linea Lite Mono 4k, 25kHz, GigE
- 합리적인 가격의 Line Scan 카메라
Remarkably cost effective performance

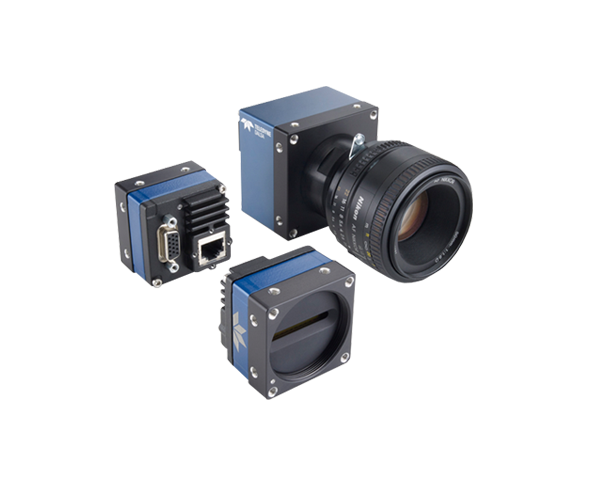

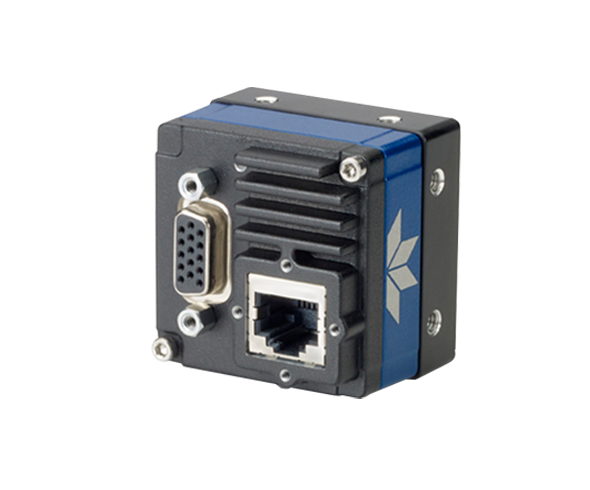

Linea Lite makes line scan more accessible than ever. Designed with performance in mind, this camera offers superior color fidelity with 2k to 4k resolution and line rates from 12.5 to 50 kHz, with a GigE Vision® interface.
Compact and powerful
With a 45% smaller footprint than the original Linea, Power over Ethernet to simplify cabling, and supported by features like T2IR and our easy to use SaperaLT control software, Linea Lite is built for fast, easy deployment, perfect for applications like these:
- Automated optical inspection
- Sorting systems
- Materials grading and inspection
- General purpose machine vision
주요 사양
| Family | Linea Lite |
|---|---|
| Partnumber | L2-GM-04K02B-00-A |
| Number of Pixels | 4096 pixel |
| Number of Lines | 2 |
| Line Rate | 25 kHz |
| Pixel Size | 7 μm |
| Interface | GigE |
| Spectrum | Mono |
| Responsivity | |
| Dynamic Range | 72 dB |
| Sensor size(Image Circle) | 28.67 mm |
| Sensor type | CMOS |
| Mount | M42 |
| Size | 46 x 46 x 37 mm |
| Maker | Teledyne Dalsa |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | [2021년] Linea Lite Mono 2k 4k Datasheet | |
| 매뉴얼 | [2024년] Linea Lite Mono/Color series Manual | |
