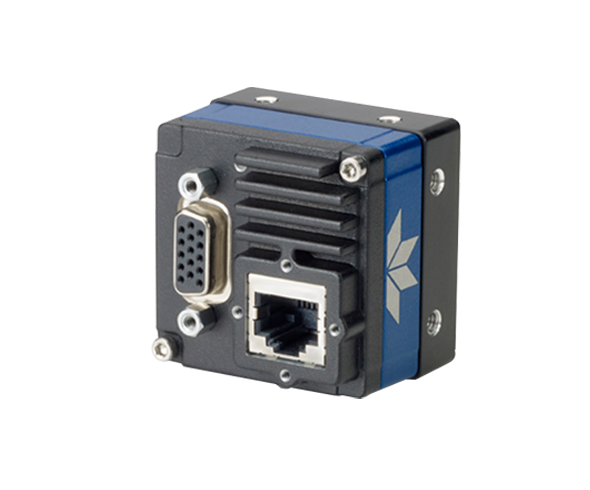

Linea Lite Color 2k, 25kHz, GigE
합리적인 가격의 Line Scan 카메라


Remarkably cost effective performance

Linea Lite makes line scan more accessible than ever. Designed with performance in mind, this camera offers superior color fidelity with 2k to 4k resolution and line rates from 12.5 to 50 kHz, with a GigE Vision® interface.


Compact and powerful

With a 45% smaller footprint than the original Linea, Power over Ethernet to simplify cabling, and supported by features like T2IR and our easy to use SaperaLT control software, Linea Lite is built for fast, easy deployment, perfect for applications like these:


- Automated optical inspection

- Sorting systems

- Materials grading and inspection

- General purpose machine vision

주요 사양

Family Linea Lite
Partnumber L2-GC-02K02B-00-A
Number of Pixels 2048 pixel
Number of Lines
Line Rate 25 kHz
Pixel Size 14 μm
Interface GigE Vision
Chroma Color
Responsivity
Dynamic Range 72 dB
Sensor size(Image Circle) 28.67 mm
Sensor type CMOS
Mount M42
Size 46 x 46 x 37 mm
Maker Teledyne Dalsa

다운로드

구분 파일명 다운로드
카달로그 [2024년] 앤비젼 전제품 카달로그 다운로드
데이터시트 Linea Lite Color 2k Datasheet(Preliminary) 다운로드
