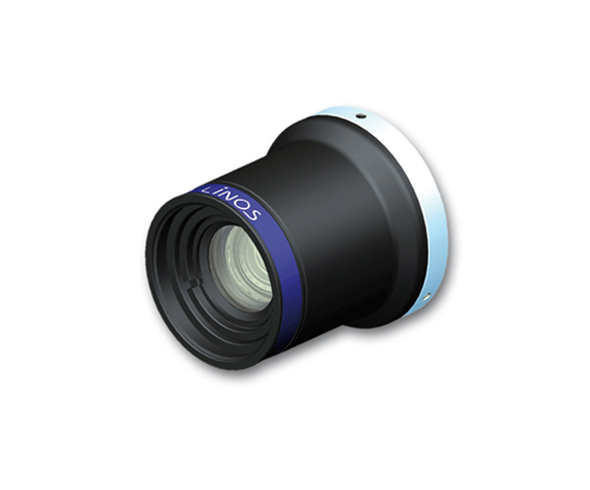

- MeVis-CF 2.8/35
- 합리적 고성능의 C-mount 렌즈
Superior Optical Performance Packaged in a Compact and Robust Housing
The major difference to the standard MeVis-C Series is the fixed aperture. This enhances durability, reduces size for compact installation and offers a more cost-effective design. The lenses are available in several versions offering a variety of apertures.
Key Performance
- Highest optical performance
- Fixed aperture
- Large image circle up to 1 inch
- For pixel size even below 2 µm
- High numerical aperturet
- Compact and robust mechanics
앤비젼 C-mount 광학계산기
간단한 입력을 통해 C-mount 렌즈 관련
유용한 정보를 얻을 수 있습니다. (로그인후 사용가능)
1) Focal Length
2) Working Distance
3) FOV
주요 사양
| Family | MeVis |
|---|---|
| Partnumber | 0020-008-000-21 |
| Focal length | 35 mm |
| Image circle | 16 mm |
| Sensor Format(Inch) | 1" |
| F/# | 2.8 |
| Iris Option | Fixed |
| Mount | C |
| MOD | 370.3 mm |
| Distortion | <-0.1 % |
| Magnification range | ∞ ~ 0.1 x |
| Magnification | 0.05 x |
| Wavelength | 450 ~ 950 |
| Type | Fixed focal length |
| Maker | Excelitas |
| Resolution |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 카달로그 | MeVis-C / MeVis-Cm / MeVis-CF Brochure (한글) | |
| 데이터시트 | MeVis-CF 2.8/35 Datasheet | |
