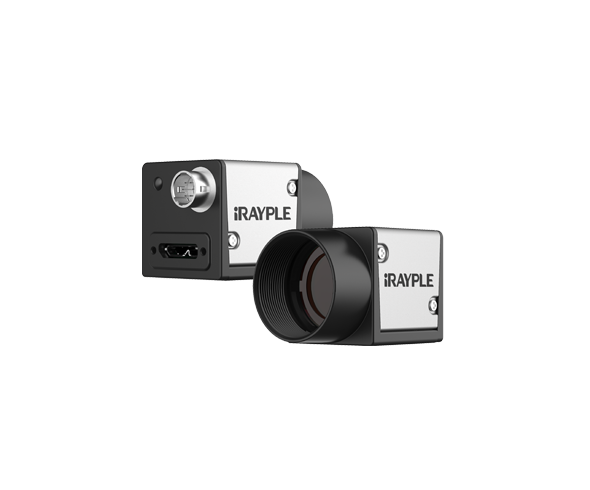

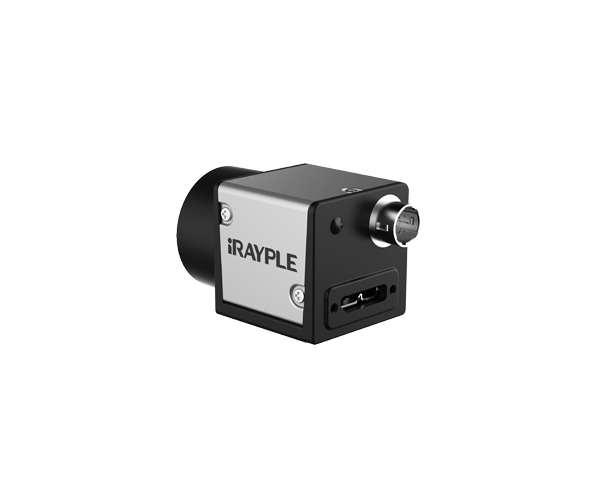

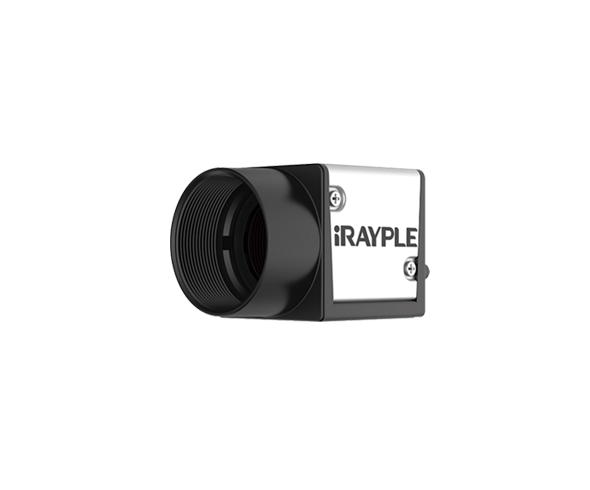

- HuaRay iRAYPLE 12M Color, USB 3.0
- IMX 226 센서가 적용된 USB타입의 Area scan 컬러 카메라
iRAYPLE 카메라를
선택해야만하는 이유
USB 3.0 인터페이스 편의성에 안정적인 성능을 더해
기본에 충실한 Huaray 카메라를 소개합니다.
Technical features
- USB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via USB interface
- Compact size of 29mmx29mmx29mm
- 128MB on-board cache for data transmission or image resend
- Support Software Trigger/Hardware Trigger/Free Run Mode
- Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
- Support multiple image data formats output/ROI/Mirror, etc.
- Compatible with USB3.0 Vision protocol and GenICam standard
- Conform to CE, FCC, RoHS
Application Industry
- Defect inspection
- SMT
- Vision localization
- Dimension measurement
- Barcode reading
- VR/AR
- Logistic Industry
주요 사양
| Family | iRAYPLE |
|---|---|
| Partnumber | A3A20CU24E |
| Resolution | 12 Megapixel |
| Resolution(H*V) | 4000 x 3000 pixel |
| Sensor | Sony IMX 226 |
| Sensor size(Image Circle) | 9.25 mm |
| Sensor Format(Inch) | 1/1.7" |
| Turbodrive Frame Rate | |
| Frame Rate | 30 fps |
| Pixel Size | 1.85 μm |
| Interface | USB 3.0 |
| Spectrum | Color |
| Readout Method | Rolling |
| Dynamic Range | 66 dB |
| Sensor type | CMOS |
| Mount | C |
| Size | 29 x 29 x 29 mm |
| Maker | Huaray |
