- LF Series 2/50

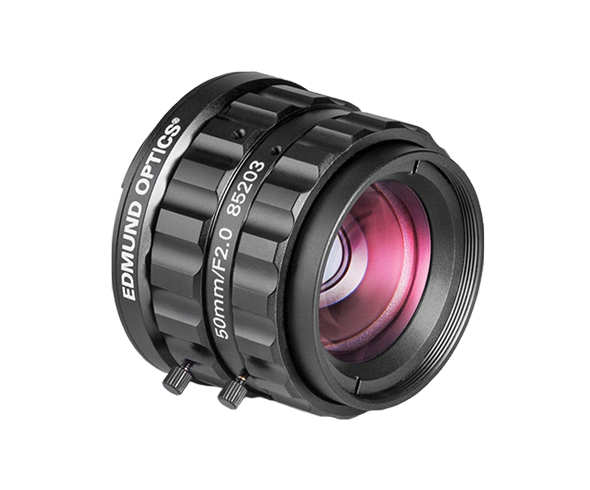

- 50mm Focal Length, LF Series Fixed Focal Length Lens
주요 사양
| Family | LF Series |
|---|---|
| Partnumber | 85-203 |
| Focal length | 50 mm |
| Image circle | 35 mm |
| Sensor Format(Inch) | 35 |
| F/# | 2 ~ 22 |
| Iris Option | Variable |
| Mount | F |
| MOD | 500 mm |
| Distortion | <1 % |
| Magnification range | 0 ~ 0.111 x |
| Magnification | 0.055 x |
| Wavelength | Visible |
| Type | Fixed focal length |
| Maker | Edmund |
| Resolution |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2026년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | LF Series 2/50 Datasheet | |
| 3D 도면 | LF Series 2/50 3D Model | |
| 3D 도면 | LF Series 2/50 3D Model (STEP) | |
