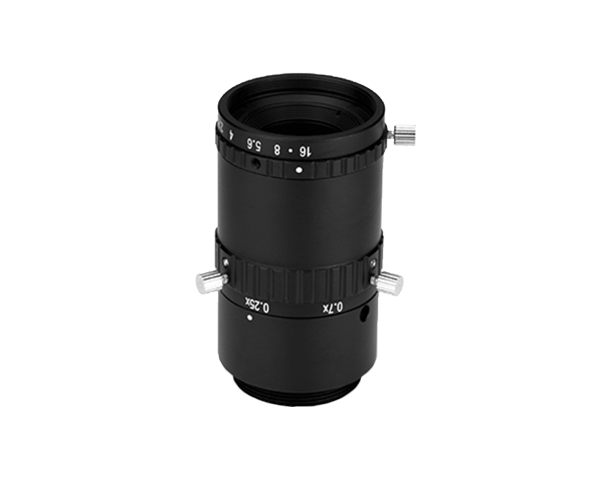

ML3510A
1.1'' Macro Lens

Features of Products

- Ultra-low distortion, high performance design

- Micro lens, with WD 59-150mm

- 12MP

- Large format, can perfectly match IMX253LLR sensor(1.1'' 12MP)

- Magnification from 0.25x to 0.7x

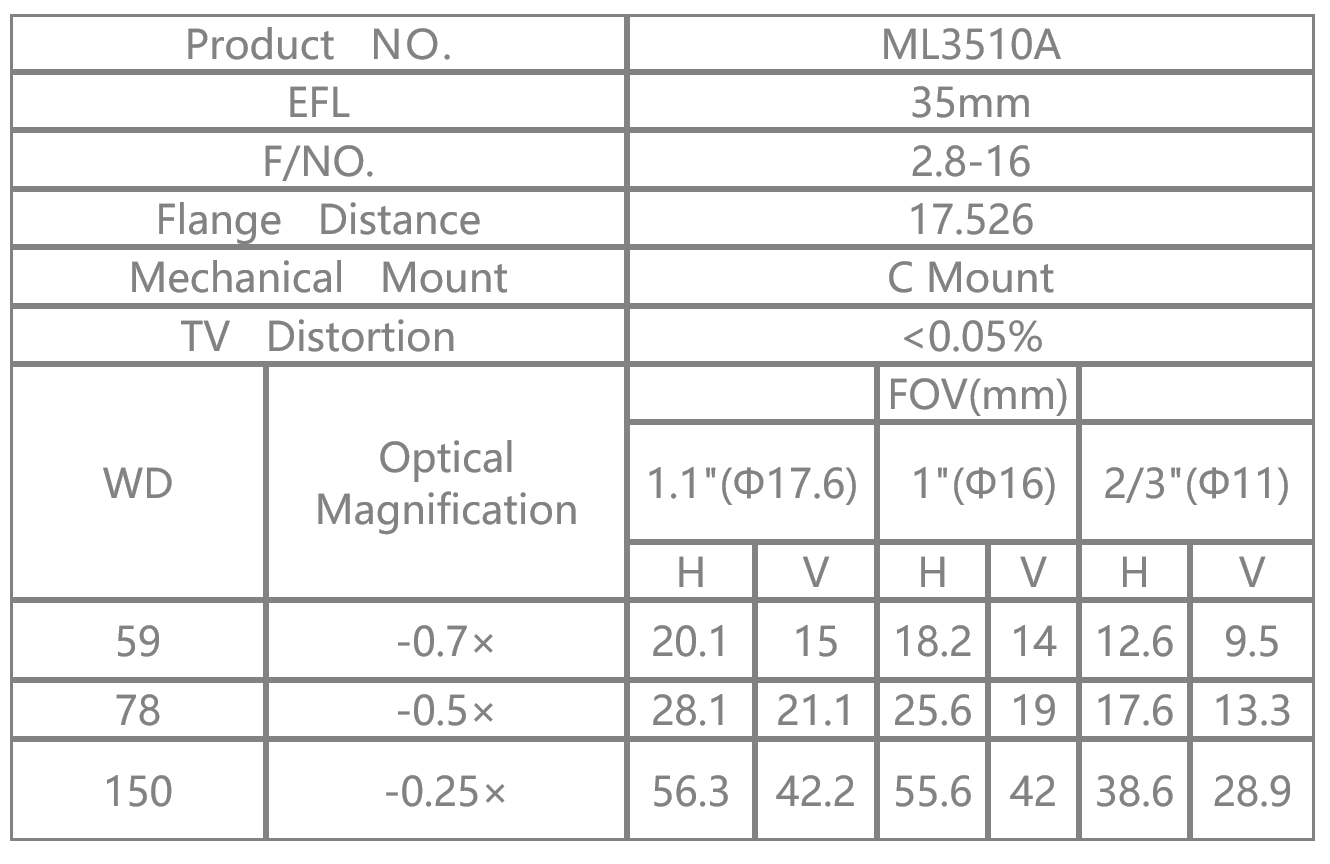

Specification of Products

앤비젼 C-mount 광학계산기

간단한 입력을 통해 C-mount 렌즈 관련

유용한 정보를 얻을 수 있습니다. (로그인 후 사용가능)



1) Focal Length

2) Working Distance

3) FOV

주요 사양

Family 1.1'' Macro
Partnumber ML3510A
Focal length 35 mm
Image circle 17.6  mm
Sensor Format(Inch) 1.1''
F/# 2.8 ~ 16
Iris Option Variable
Mount
MOD 59 mm
Distortion <0.05 %
Magnification range 0.25 ~ 0.7 x
Magnification 0.5 x
Wavelength Visible
Type Fixed focal length
Maker Chiopt
Resolution 12MP

다운로드

구분 파일명 다운로드
카달로그 [2024년] 앤비젼 전제품 카달로그 다운로드
데이터시트 ML3510A Datasheet 다운로드
