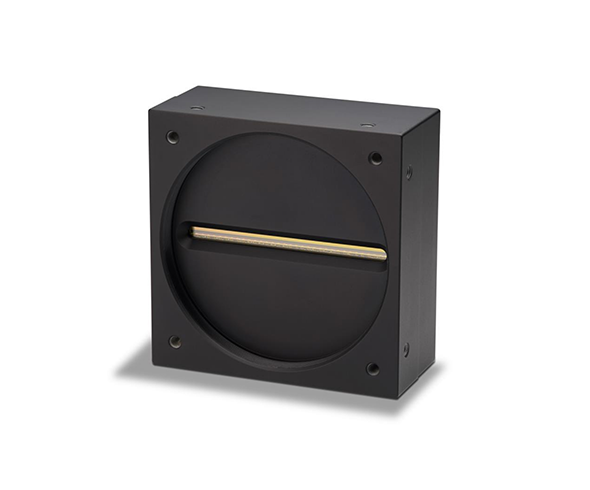

Piranha4 Trilinear Color 8k, 33 kHz
8K Trilinear Color CMOS Camera

Raising the performance bar once again

Powered by our latest high performance CMOS line scan imagers, the Piranha4 offers resolutions from 2k to 8k pixels in a variety of pixel sizes to let you inspect and detect with unrivalled precision, speed, and responsivity. Our CMOS image sensors' high dynamic range, combined with on-chip ADC for high speed, gives the Piranha4 cameras unprecedented performance.

High Performance Color, Advanced Features, and Programmability

The Piranha4 cameras offer advanced features such as sub-pixel spatial correction, areas of interest (up to 4 at a time) to reduce data processing and simplify cabling, as well as dual-line area mode to double line rate, HDR mode, shading and lens correction. The Piranha4 is built for the real world with features to ease system integration. The advanced GenICam compliant user interface makes it easy to set up and control camera parameters such as exposure control, FFC, white balance, gain, test patterns, diagnostics and more.

Highest line rates in the industry

Our unique CMOS line scan architectures include dual line scan monochrome to deliver a 2x increase in responsivity, as well as bilinear, trilinear, and quadlinear color designs to maximize color performance. Large full-well capacity maximizes signal coverage for bright light, while low read noise ensures superior signal-to-noise at low light.

주요 사양

Family Piranha4
Partnumber P4-CC-08K03T-01-R
Number of Pixels 8192 pixel
Number of Lines
Line Rate 33 kHz
Pixel Size 7.5 μm
Interface Camera Link
Chroma Color
Responsivity 12(R) 9.5(G) 7(B) DN/nJ/cm2(8bit@최소게인)
Dynamic Range 56 dB
Sensor size(Image Circle) 61.44 mm
Sensor type CMOS
Mount M72 x 0.75
Size 80 x 80 x 40.1 mm
Maker Teledyne Dalsa
