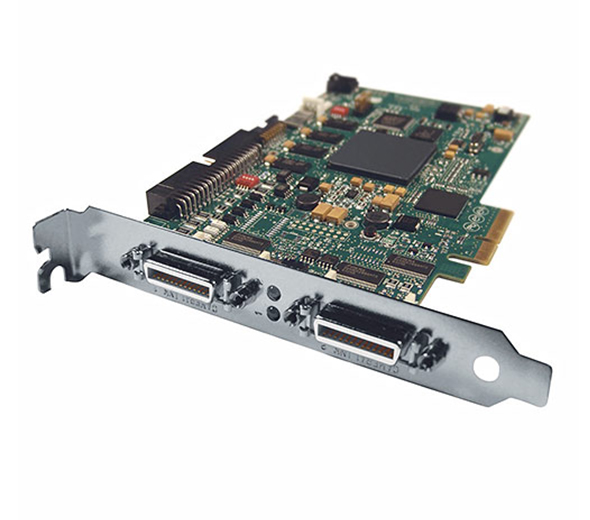

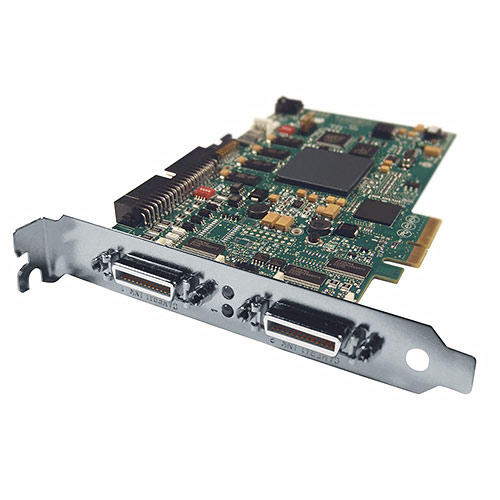

Xcelera-CL PX4 Full
1x CameraLink Base, Medium, Full or 80-bit(DECA) mode

Advanced performance and flexibility

Building on the field proven technology and performance of Teledyne DALSA’s X64 frame grabbers the new Xcelera Series leverages the PCI Express (PCIe) platform to bring traditional image acquisition and processing technology to new levels of performance and flexibility. The PCIe host interface is a point to point host interface allowing simultaneous image acquisition and transfer without loading the system bus and involving little intervention from the host CPU. The X64 Xcelera-CL PX4 Full is a Camera Link frame grabber that is based on the PCI Express x4 interface. Compatible with a Base, Medium or Full Camera Link® camera, the X64 Xcelera-CL PX4 Full supports a wide variety of multi-tap area and line scan color and monochrome cameras. For greater versatility, the X64 Xcelera-CL PX4 Full board can interface with camera pixel depths and tap configurations not covered by the Camera Link standard. For example, the Xcelera-CL PX4 Full can support 10-taps or higher with 8-bits per tap.

Fully supported by Sapera™ vision SDK

When combined with a compatible Teledyne DALSA frame grabber, standard Sapera Processing run-time licenses are offered at no additional charge. Sapera Processing is at the heart of Sapera Vision Software, delivering a suite of image processing and analysis functions. These functions include over 400 image processing primitives, barcode tools, pattern matching tools (both area-based and edge-based), OCR, color and blob analysis, measurement, and calibration tools for perspective and lens correction. The standard tools run-time license includes access to image processing functions, area based (normalized correlation based) template matching tools, blob analysis, and lens correction tools.

주요 사양

Family Xcelera-CL
Partnumber OR-X4C0-XPF00
PC Slot PCIe 1.0 x4
Acquisition Rate 20MHz ~ 85MHz
Memory 128MB
Data Connector Camera Link standard
Maker Teledyne Dalsa

다운로드

구분 파일명 다운로드
매뉴얼 Xcelera-CL PX4 Dual Manual 다운로드
Xcelera-CL PX4 SE User Manual 다운로드
Xcelera-CL PX4 Full(OR-X4C0-XPF00) Manual 다운로드
