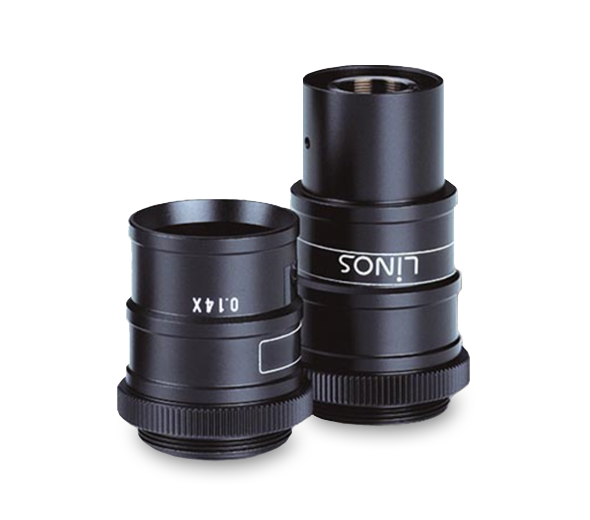

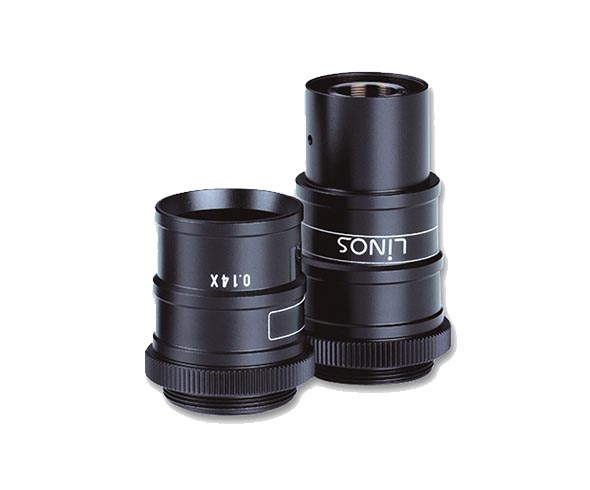

- Macro CCD 렌즈 0.3x
- 1/2“ 2/3“ CMount CCD 카메라를 위한 설계
Macro Lenses developed by Rodenstock Präzisionsoptik for CCD Cameras, feature the highest resolution, excellent contrast, color neutrality and are virtually free of distortions. A large selection of Macro Lenses with magnification ratios from 1:3 to 4:1 is available which can be supplied with various fixed diaphragm aperture settings.
Key Performance
- High optical performance
- Huge range of magnifications available
- Designed for 1/2" and 2/3" sensors
- Image circle: 11 mm
앤비젼 C-mount 광학계산기
간단한 입력을 통해 C-mount 렌즈 관련
유용한 정보를 얻을 수 있습니다. (로그인후 사용가능)
1) Focal Length
2) Working Distance
3) FOV
주요 사양
| Family | Macro CCD |
|---|---|
| Partnumber | 0009-190-000-40 |
| Focal length | 24 mm |
| Image circle | 11 mm |
| Sensor Format(Inch) | |
| F/# | 3.5 |
| Iris Option | |
| Mount | C |
| MOD | 90.5 mm |
| Distortion | |
| Magnification range | 0.27 ~ 0.33 x |
| Magnification | 0.3 (1:3.3) x |
| Wavelength | 400 ~ 750 |
| Type | Fixed focal length |
| Maker | Excelitas |
| Resolution |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 데이터시트 | Macro CCD 렌즈 0.3X Datasheet | |

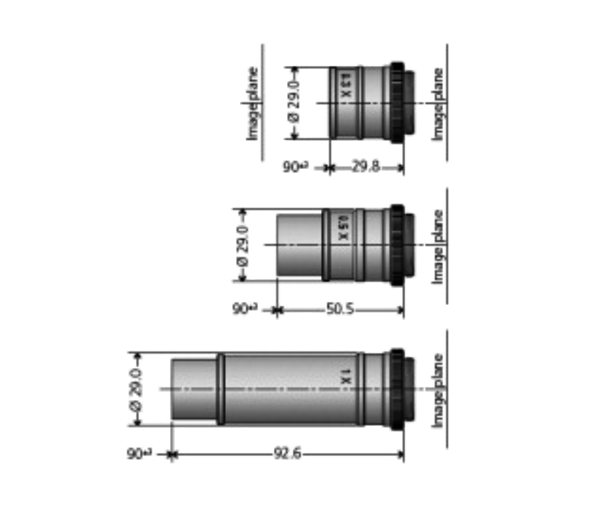

| 3D 도면 | Macro-CCD-lens 0.3X lens 3D Model (STEP) | |
