- Highest optical performance
- Large image circle up to 1 inch
- For pixel size even below 2 µm
- High numerical aperturet

간단한 입력을 통해 C-mount 렌즈 관련
유용한 정보를 얻을 수 있습니다. (로그인후 사용가능)
1) Focal Length
2) Working Distance
3) FOV

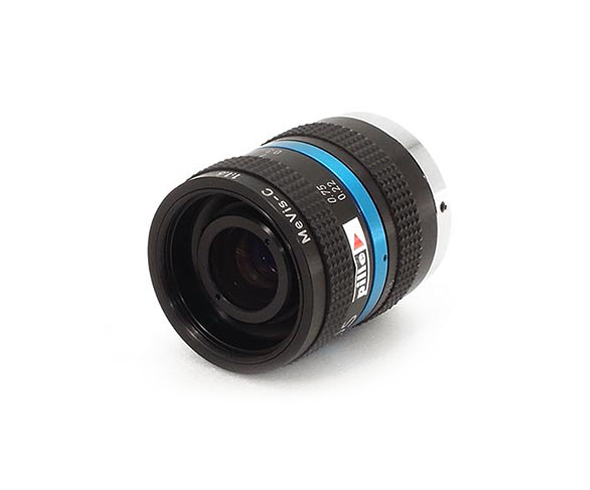

| Family | MeVis |
|---|---|
| Partnumber | 0020-001-000-42 |
| Focal length | 35.2 mm |
| Image circle | 16 mm |
| Sensor Format(Inch) | 1" |
| F/# | 1.6 |
| Iris Option | Fixed |
| Mount | C |
| MOD | 366.1 mm |
| Distortion | <-0.1 % |
| Magnification range | ∞ ~ 0.1 x |
| Magnification | 0.05 x |
| Wavelength | 850 ~ 1400 |
| Type | Fixed focal length |
| Maker | Excelitas |
| Resolution |
