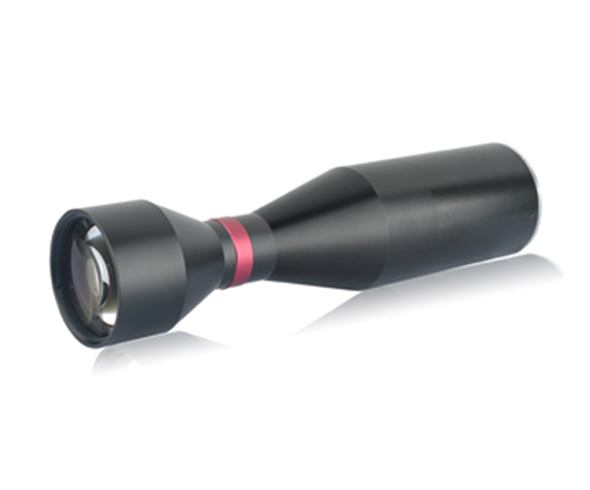

- DTCM210-90-AL
- 높은 성능 및 합리적인 비용의 Bi-telecentric Lens
F/M Mount Bi-telecentric Lens
DTCM Series F-Mount high precision bi telecentric lenses are the typical choice for extremely accurate measurement of large items such as engine parts, glass or metal sheets, PCBs and electronic components, LCDs, etc- Optimized for 4/3"~35mm F-Mount cameras
- erfectly suitable for 4K and 8K line scan cameras
- FOV ranges from 26mm to 300mm
- Very high resolution, low distortion and homogeneous image quality
- Yield constant magnification over defined depth of field
- Customized mounts available.
주요 사양
| Family | DTCM |
|---|---|
| Partnumber | DTCM210-90-AL |
| Magnification | 0.367 x |
| Image circle | 32 mm |
| FOV | 90 mm |
| Coaxial | non-coaxial |
| DOF | ±4.7 mm |
| NA | |
| F/# | 8.6 |
| Wavelength | Visible |
| Type | Bi-telecentric |
| Mount(변경제작가능) | M58 |
| WD | 208±3 mm |
| Distortion | <0.1 % |
| Telecentricity | <0.1 ° |
| Maker | SZ Vico |
| Length | 304 mm |
다운로드
| 구분 | 파일명 | 다운로드 |
|---|---|---|
| 카달로그 | [2025년] 앤비젼 전제품 카달로그 |  |
| 카달로그 | [2025년] Vico Lens catalog (ENG) | |
| 데이터시트 | DTCM210-90-AL Datasheet | |
